ANTI ROLLING GYRO
Engineered for Stability—Trusted Anti-Rolling Solution
Engineered for superior marine stabilization, this gyroscopic stabilizer boat featuring a non-inductive permanent magnet synchronous motor (PMSM) and high-reliability vacuum sealing technology that ensures 15 years of maintenance-free operation. Designed with a high-speed bearing system, efficient heat dissipation in vacuum environments, and advanced shock absorption, it delivers quiet, stable performance even in rough seas. As a boat gyro stabilizer, it has been tested to withstand rapid maneuvers at speeds up to 50 knots and level 4 sea conditions, it offers unmatched durability and reliability for demanding maritime applications.
Partner with us to equip your vessels with our boat gyro stabilizer. Click the button below to get in touch with us today!
ANTI ROLLING GYRO SERIES

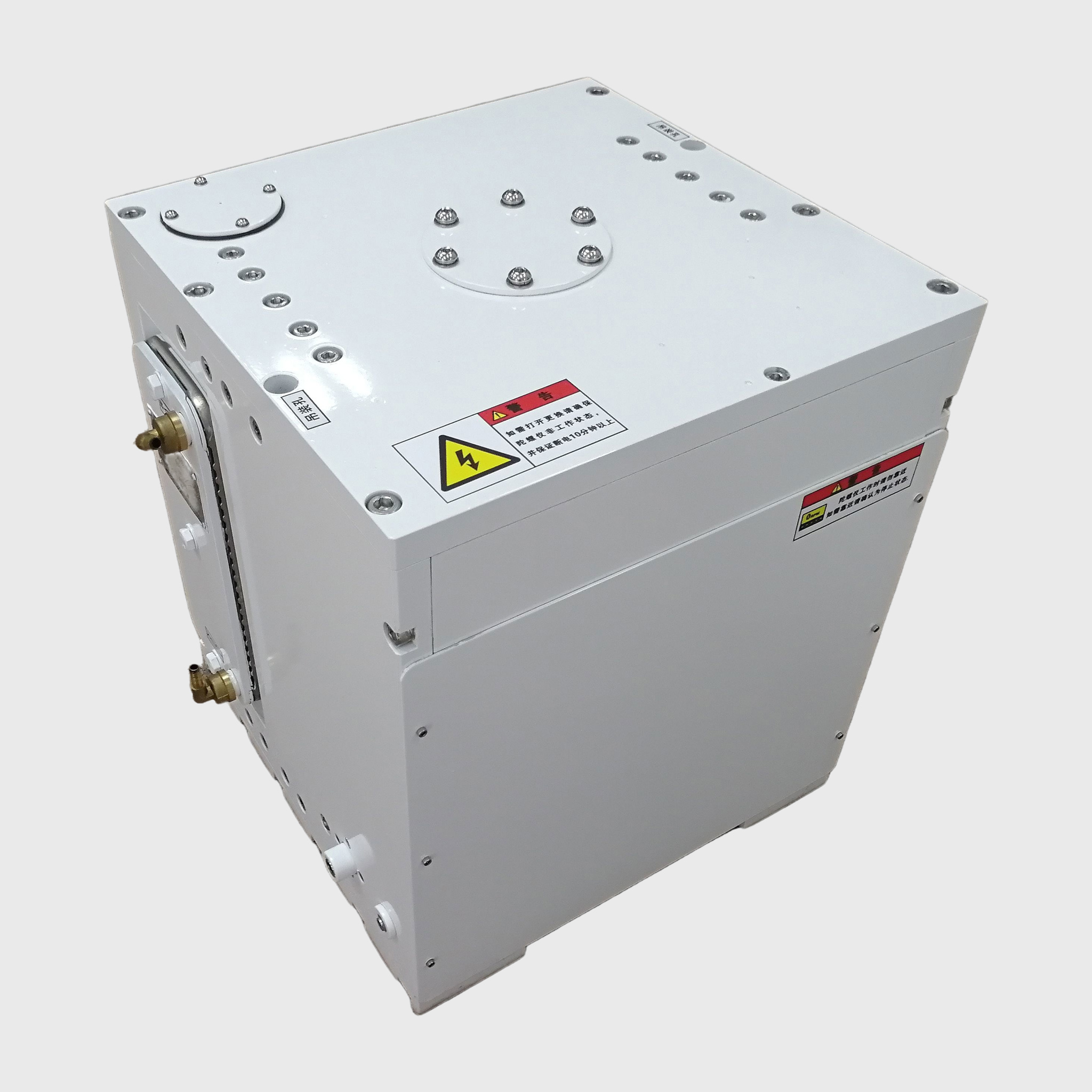

XY - 1
View More
Less than 30′ , Up to 5 tons
Rated Speed : 10,500 rpm
Rated Angular Momentum : 1,000 Nms
Maximum Anti-rolling Moment : 2,650 Nm
Dimensions : 410×406×459 mm
Weight : 160 Kg
Power Input : AC100-240 V
50/60 Hz Single Phase
Spool-Up Power : 800 W
Operating Power : 400-800 W
Spool-up Time to Stabilization: 10 min
Spool-up Time to Max Rated RPM : 24 min
Ambient Temperature : -20-60°C
Noise : <70 dB

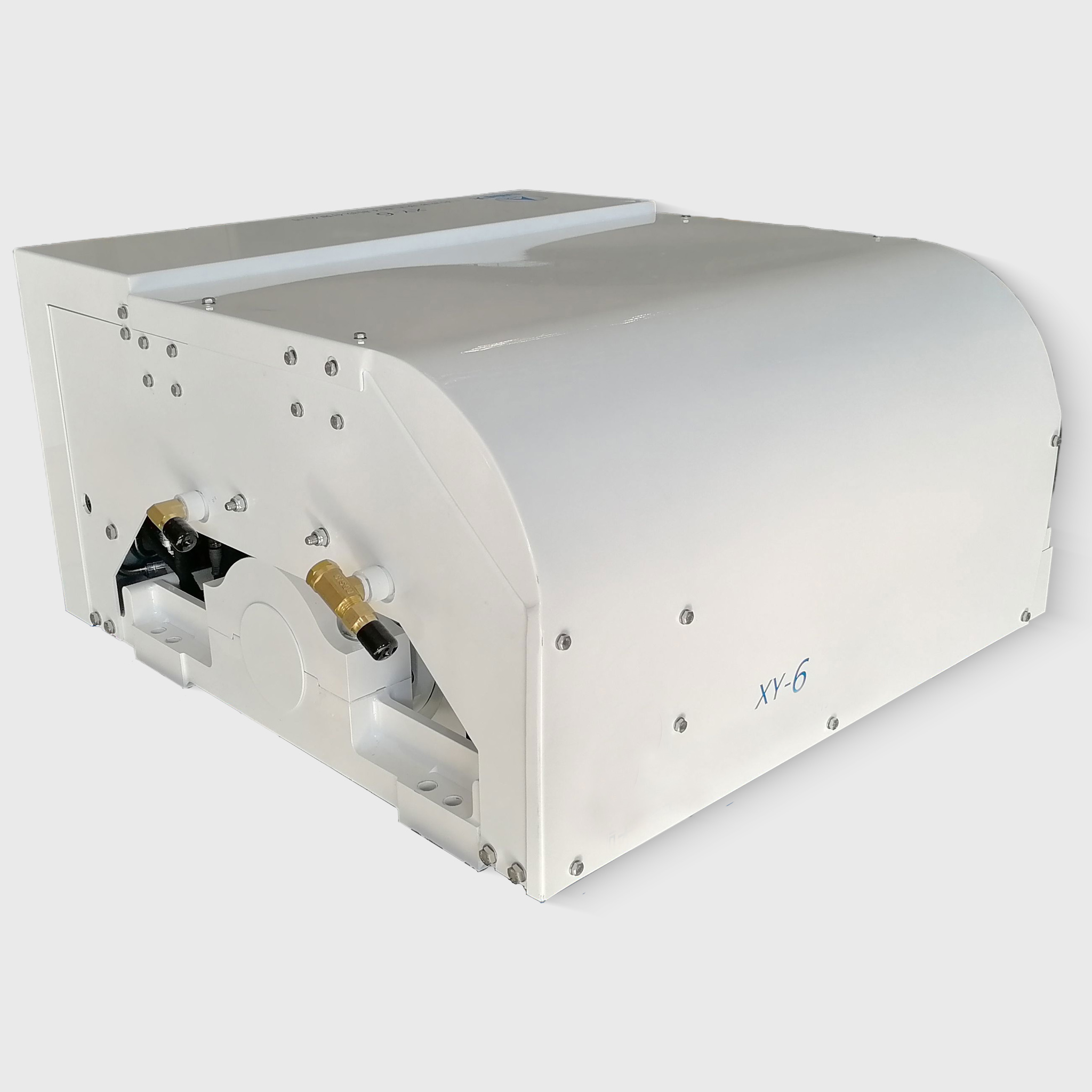

XY - 6
View More
30′ – 50′ , Up to 25 tons
Rated Speed : 10,000 rpm
Rated Angular Momentum : 6,300 Nms
Maximum Anti-rolling Moment : 21,500 Nm
Dimensions : 747×739×615 mm
Weight : 410 Kg
Power Input : AC210-240 V
50/60 Hz Single Phase
Spool-Up Power : 2,300 W
Operating Power : 700 W-2,200 W
Spool-up Time to Stabilization: 20 min
Spool-up Time to Max Rated RPM : 35 min
Ambient Temperature : -20-60°C
Noise : 68-72 dB

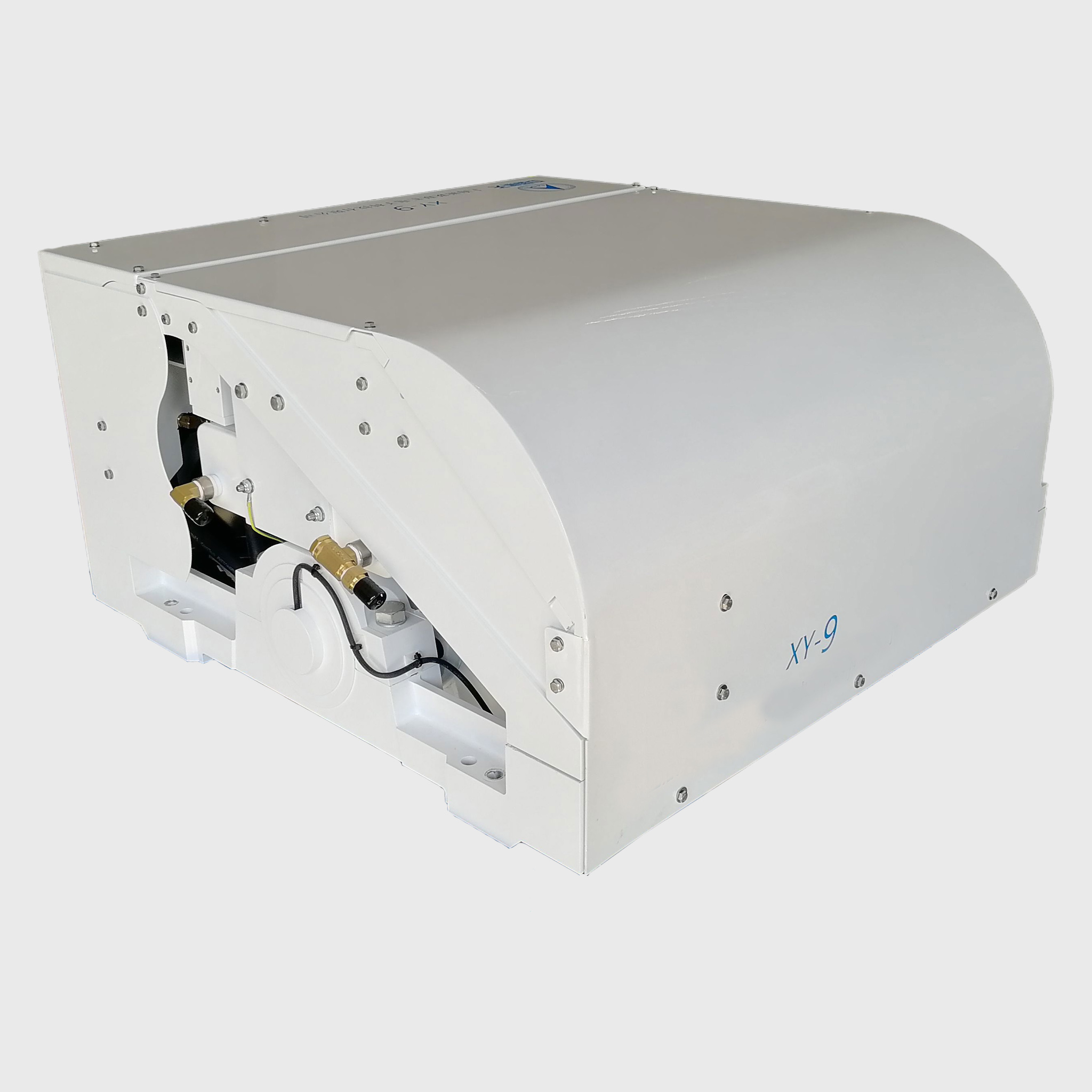

XY - 9
View More
55′ – 65′ , Up to 35 tons
Rated Speed : 9,000 rpm
Rated Angular Momentum : 9,500 Nms
Maximum Anti-rolling Moment : 31,200 Nm
Dimensions : 846X898x695 mm
Weight : 559 Kg
Power Input : AC210-240 V
50/60 Hz Single Phase
Spool-Up Power : 2,900 W
Operating Power : 900-2,300 W
Spool-up Time to Stabilization: 28 min
Spool-up Time to Max Rated RPM : 55 min
Ambient Temperature : -20-60°C
Noise : 68-70 dB
Designed specifically for small vessels
High reliability
Product features
Engineered for marine excellence, our Anti Rolling Gyro combines advanced motor technology, long-lasting vacuum sealing, and high-speed stability to deliver reliable roll reduction even in harsh sea conditions, making it an ideal choice for any gyroscopic stabilizer boat application.
- ✓ Sufficient dynamic load margin adapt to harsher environments and achieve a longer service life

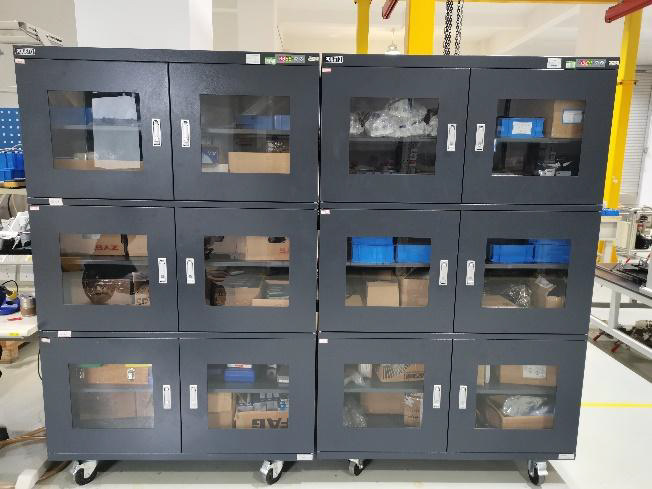

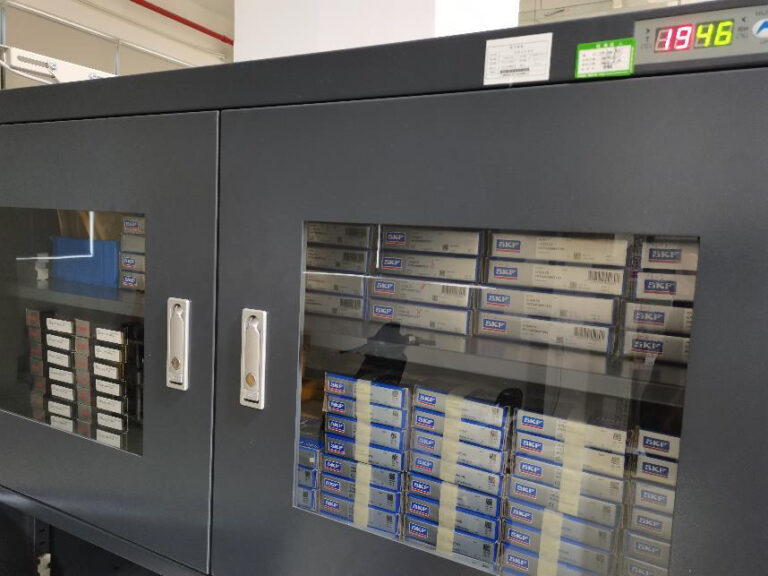

- ✓ Constant temperature and humidity chambers good storage environment for high precision materials
- ✓ The protection grade of all electronic control components reaches IP67
- ✓ All the electronic control components adopt a fully sealed structure
- ✓ All the electronic control components are connected to the outside through waterproof electrical connectors

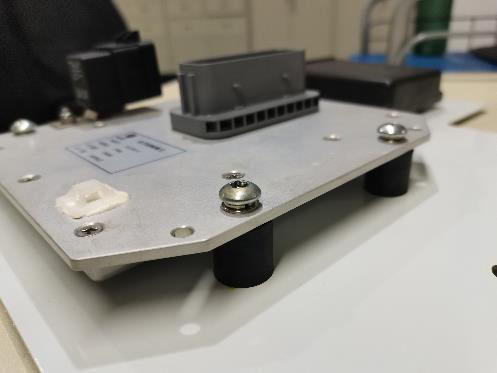

- ✓ All the electronic control components have adopted reliable shock absorption and anti-loosening measures
-
✓
Vacuum sealed cable
Aerospace-grade sealing ensures ultra-low leakage and high reliability. -
✓

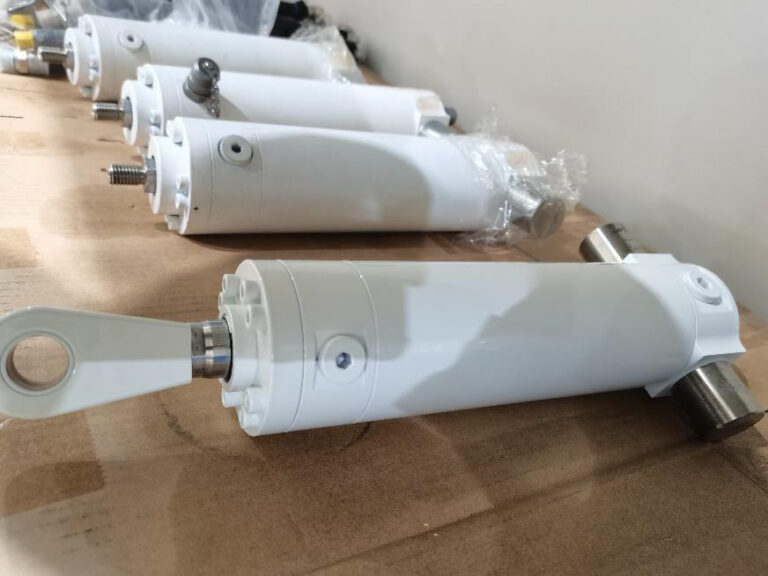

High-reliability hydraulic cylinder
Special aerospace sealing rings offer low resistance and long-term durability. -
✓
Forged flywheel body
Made from forged steel for structural strength, safety, and reliability.

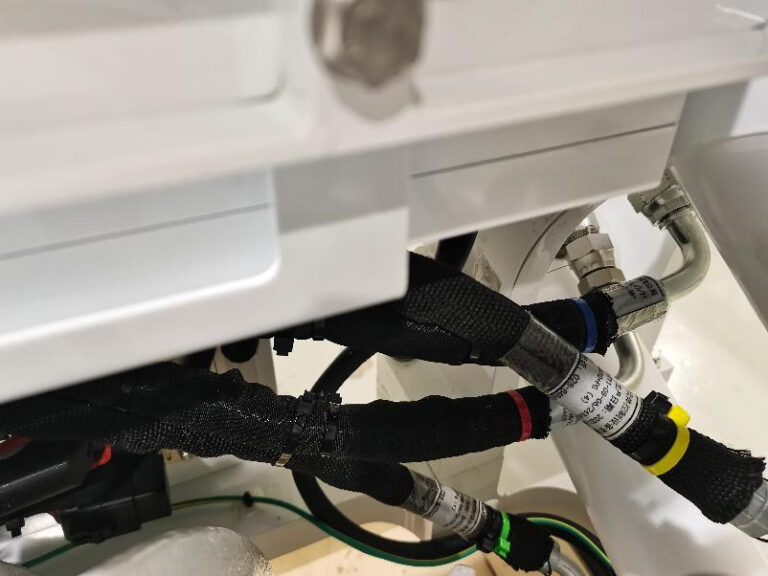

- ✓ All cables, water pipes and oil pipes are marked in standardized manners, convenient for production and maintenance.
- ✓ All moving parts, cables and water pipes are professionally designed to avoid any physical contacts.
- ✓ Workshop managed under 6S standards — clean and standardized.
- ✓ Clear production documents ensure quality and consistency.
- ✓ Raw materials meet 6S requirements with full traceability.
Comprehensive Environmental Adaptability Tests

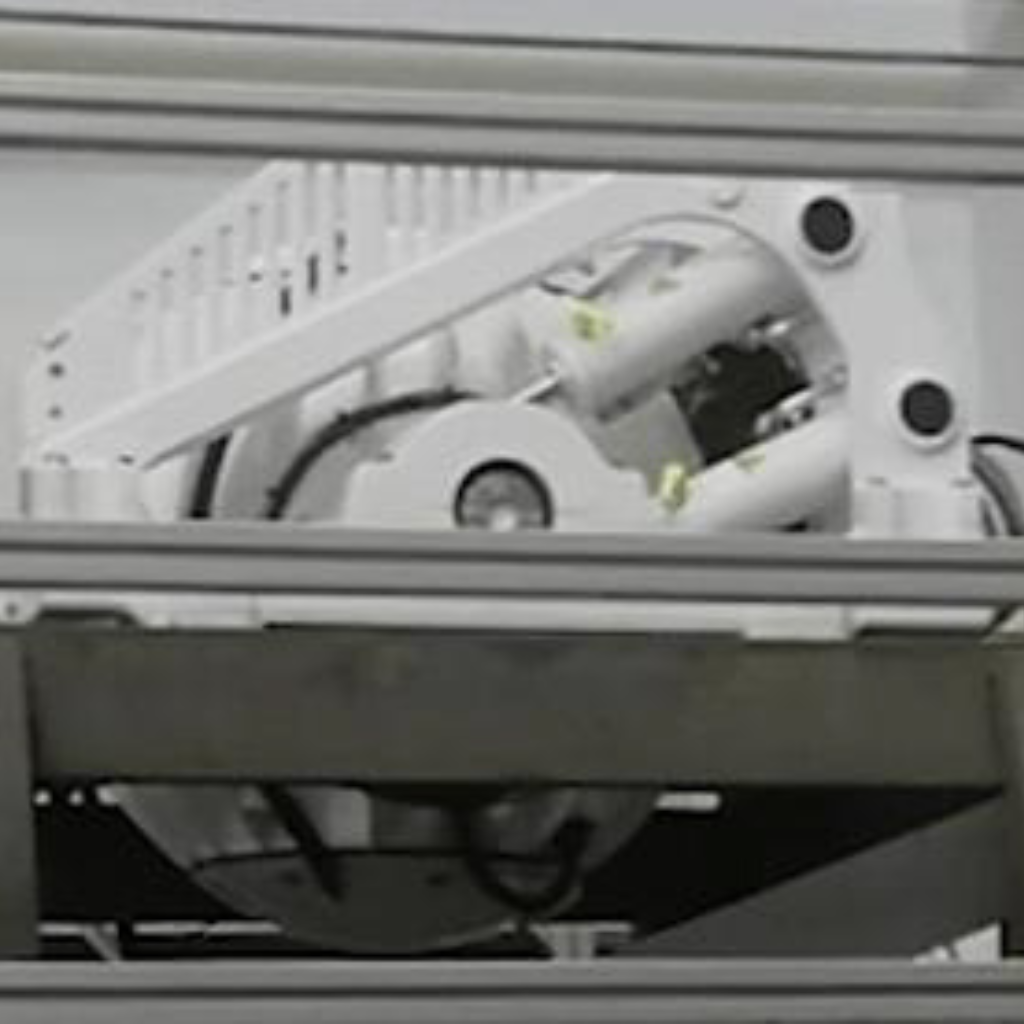

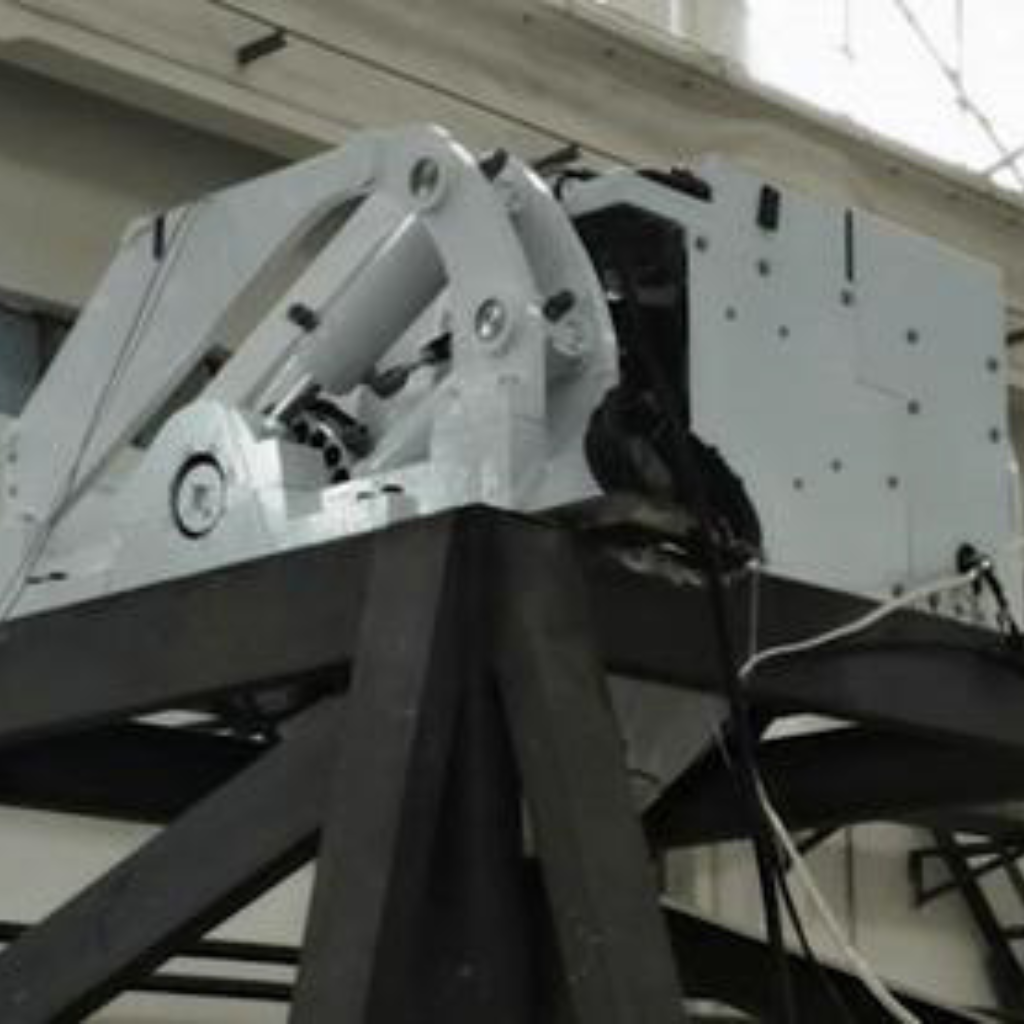

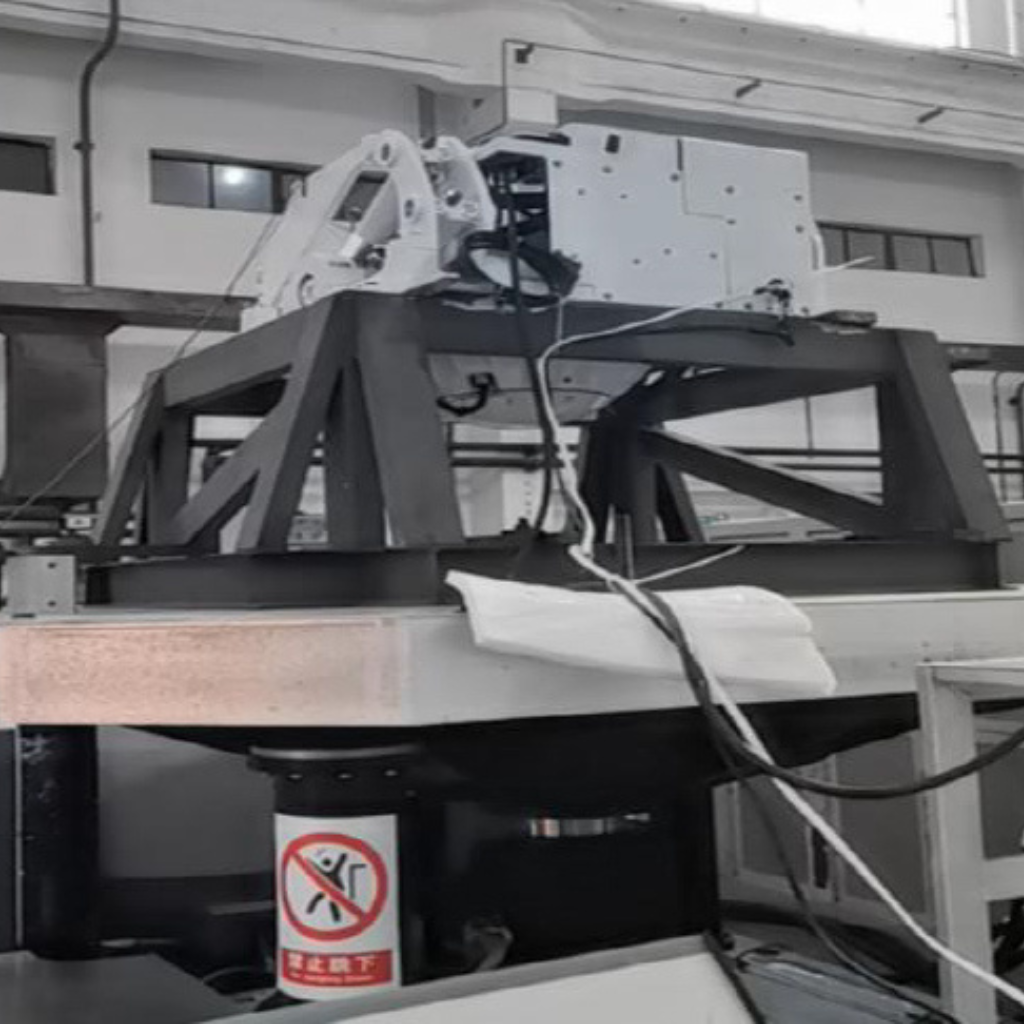

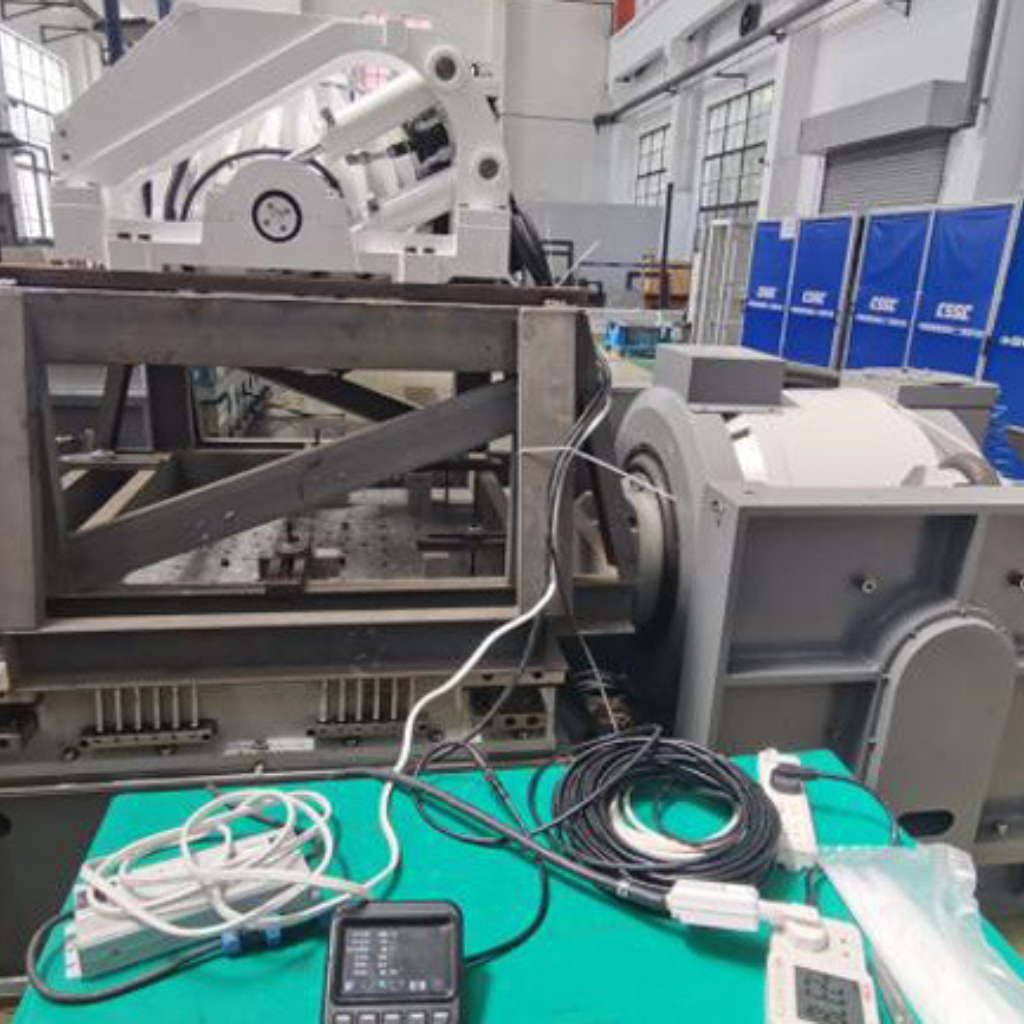

Swing table test

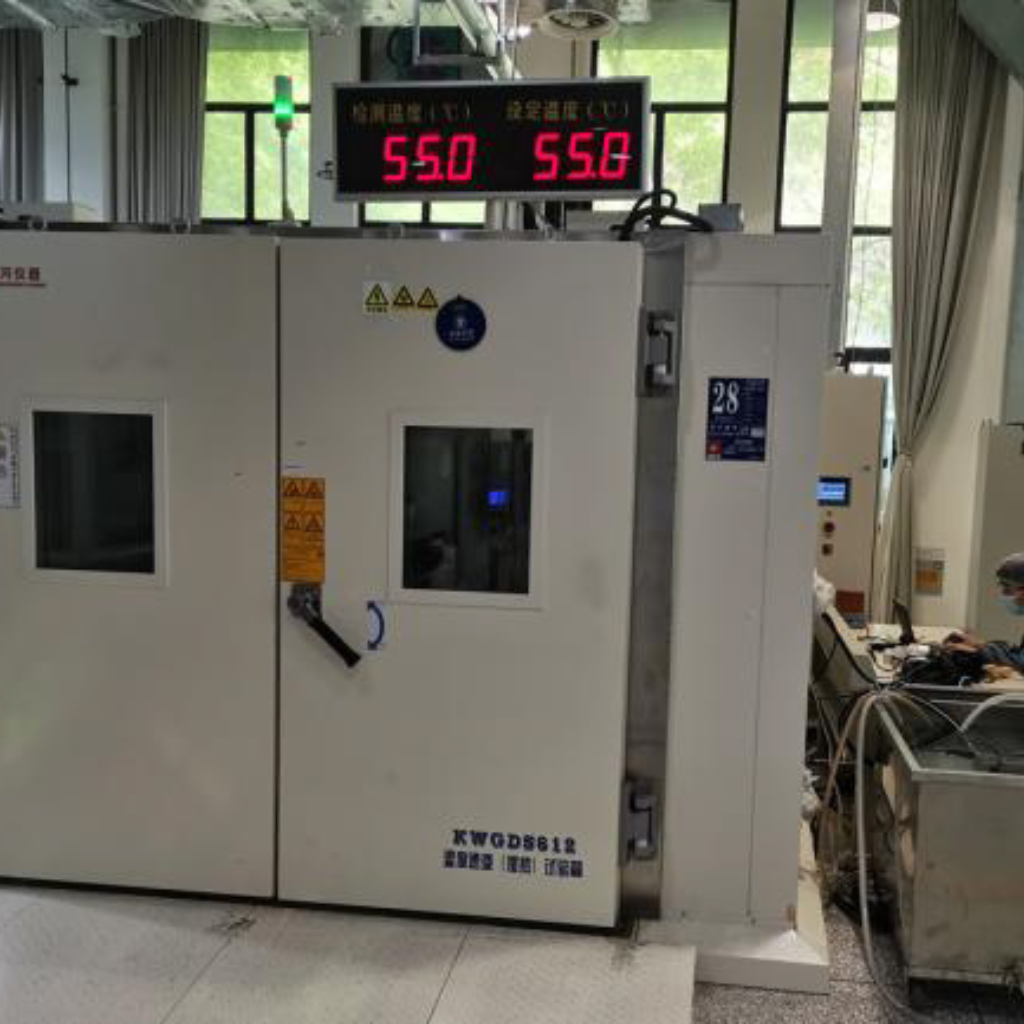

Temperature and humidity test
Vibration test

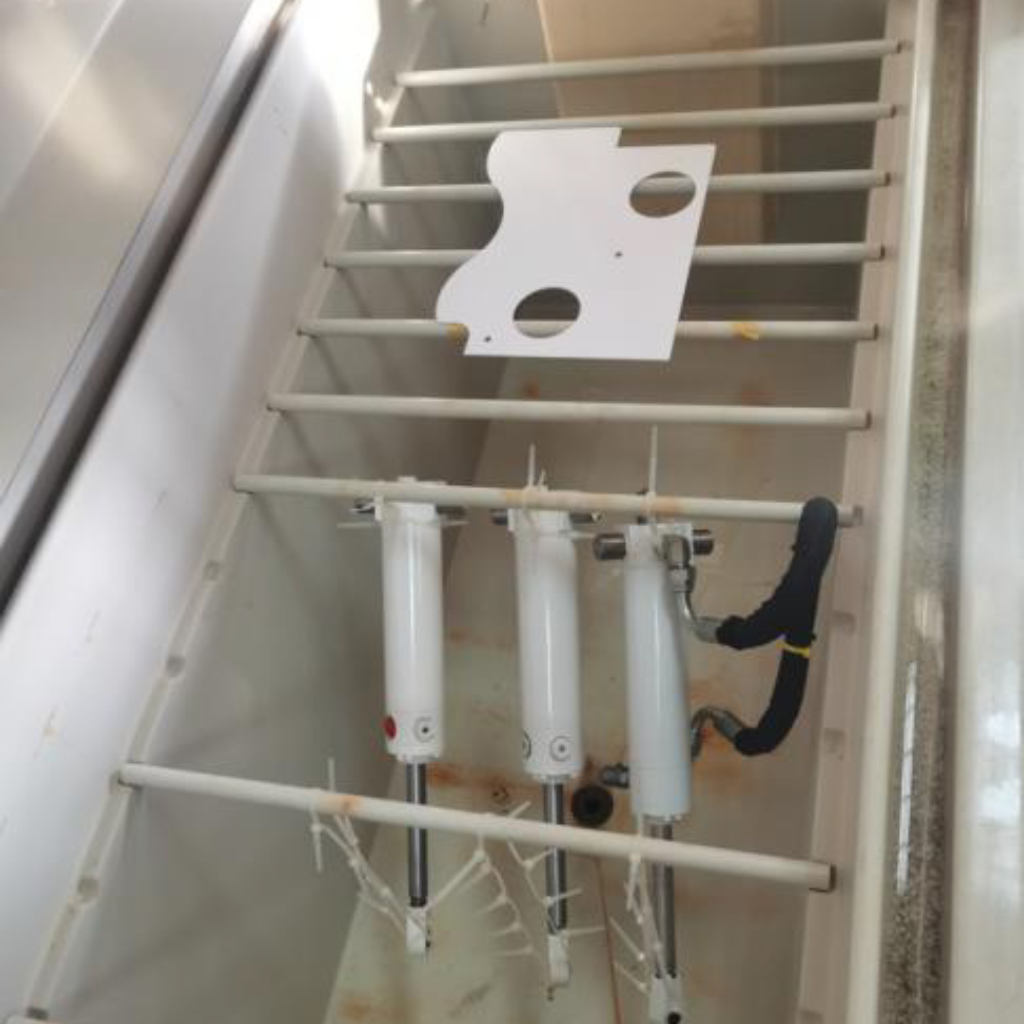

Salt spray test
Impact test
1000 consecutive
bumping test
For owners exploring highly reliable boat gyro stabilizers, this XY solution is worth considering.
Contact us to explore whether the Gyro Stabilizer is a good fit for your boat.
